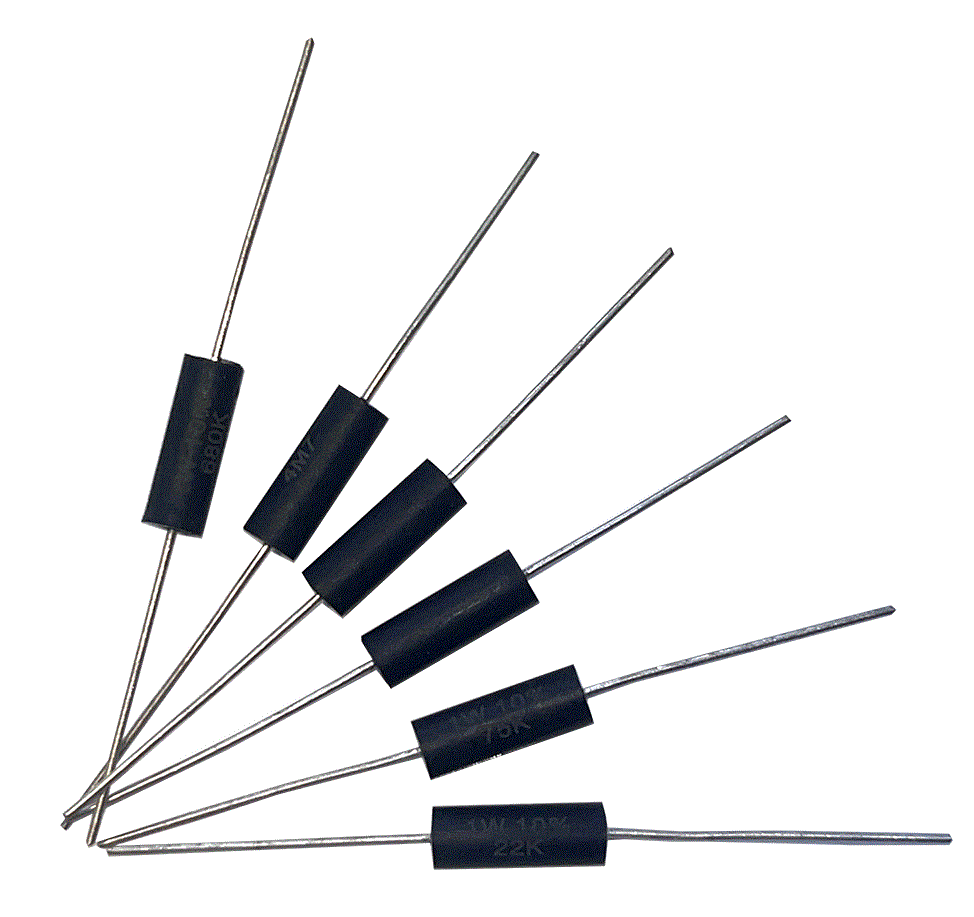

Carbon Composition Resistors
Features and Specifications
:- Brand New Production (NOT New Old Stock/NOS)
- Wattage: Available at the hard to find but often needed 1 Watt rating.
- Ohms: Most needed pre WWII and post WWII resistance sizes 10 ohms thru 10M ohms.
- Published Tolerance: +/- 10%
- Tolerance "guaranteed" by JustRadios: +/- 5%
- Operating Temperature Range: -55C to +155C
- Maximum Operating Voltage: 700V.
- Maximum (insulation) Voltage: 1000 volts
- For High Voltage / High Pulse Applications.
- Excellent characteristics against high voltage surge current.
- High insulation to protect against shorts.
- Black tubular body with wattage, tolerance and ohm resistance value marked on resistor for easy identification.
- Negative Temperature Coefficient (which means that as the temperature of the resistor increases the resistance decreases).
- ROHS compliant with Pb free terminations.
- Made by ETM an ISO 9001/2000/14001, UL, CE, SGS certified manufacturer.
